Description

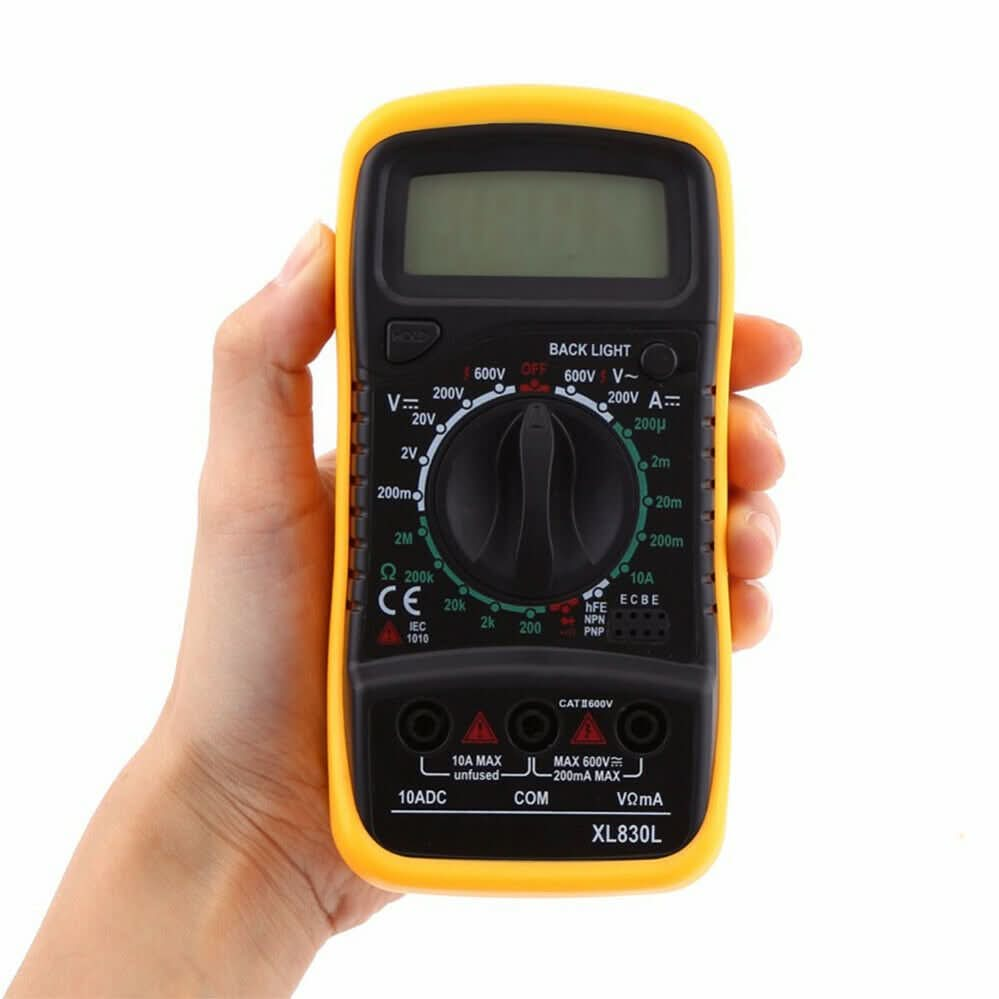

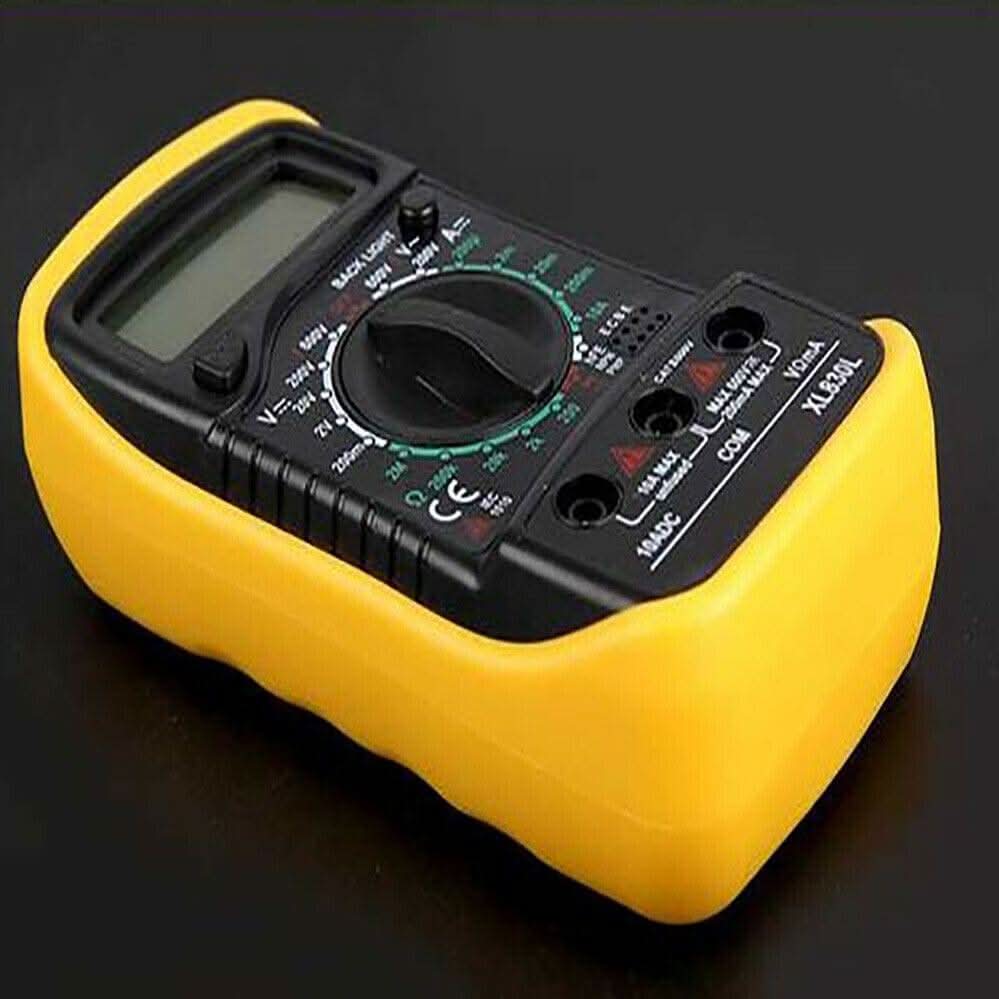

Digital LCD Multimeter – Versatile, Durable, and Easy to Use
Whether you're an electrician, technician, student, or hobbyist, this Digital LCD Multimeter is a reliable tool for diagnosing and repairing circuit boards and electrical systems. Designed for ease of use and accuracy, it features a bright backlit display and a sturdy industrial-grade silicone casing for added durability.
Key Features:
-

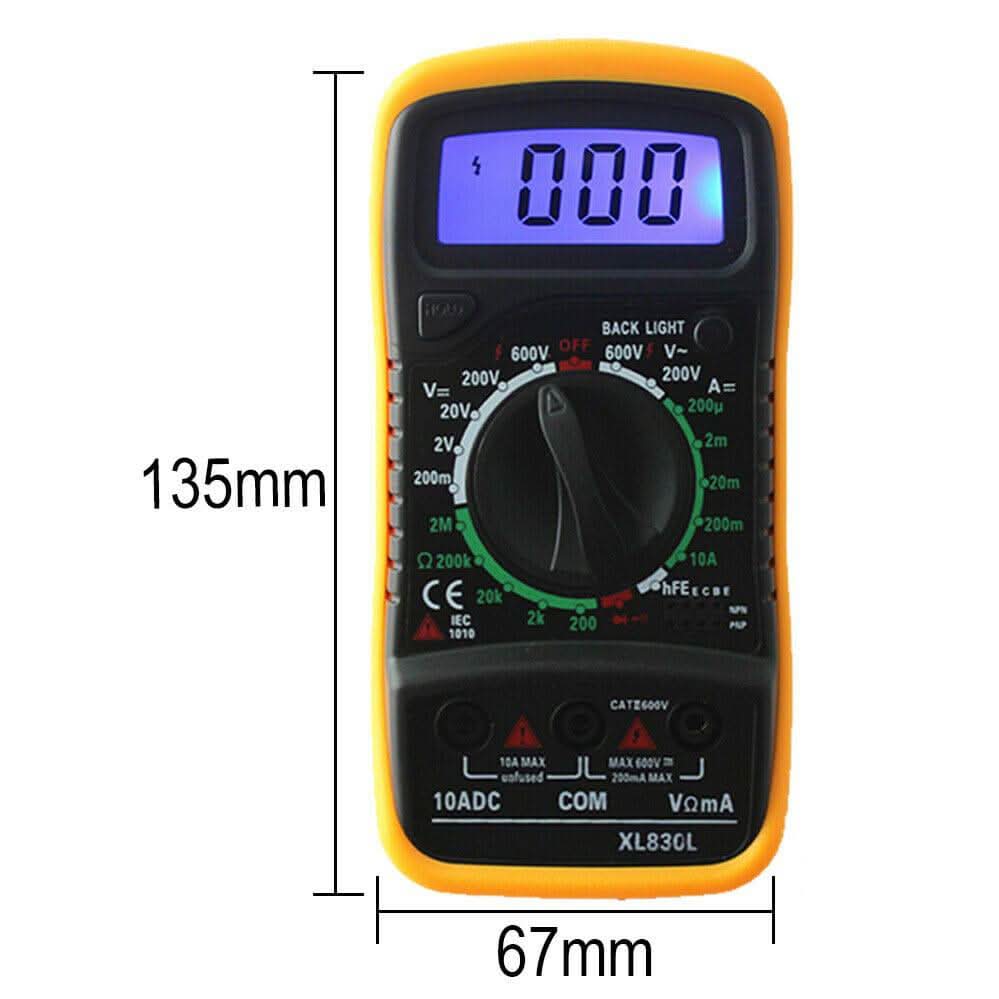

Compact Size: 135mm × 67mm × 33mm
-
Display Size: 45mm × 20mm
-
Battery: 9V, 6F22 (not included)
-
Test Leads: 60cm total length, PVC/Brass
-
Display Range: Up to 1999 count with backlight for low-light environments
-
Protective Casing: Anti-drop, anti-slip, anti-static silicone shell
-

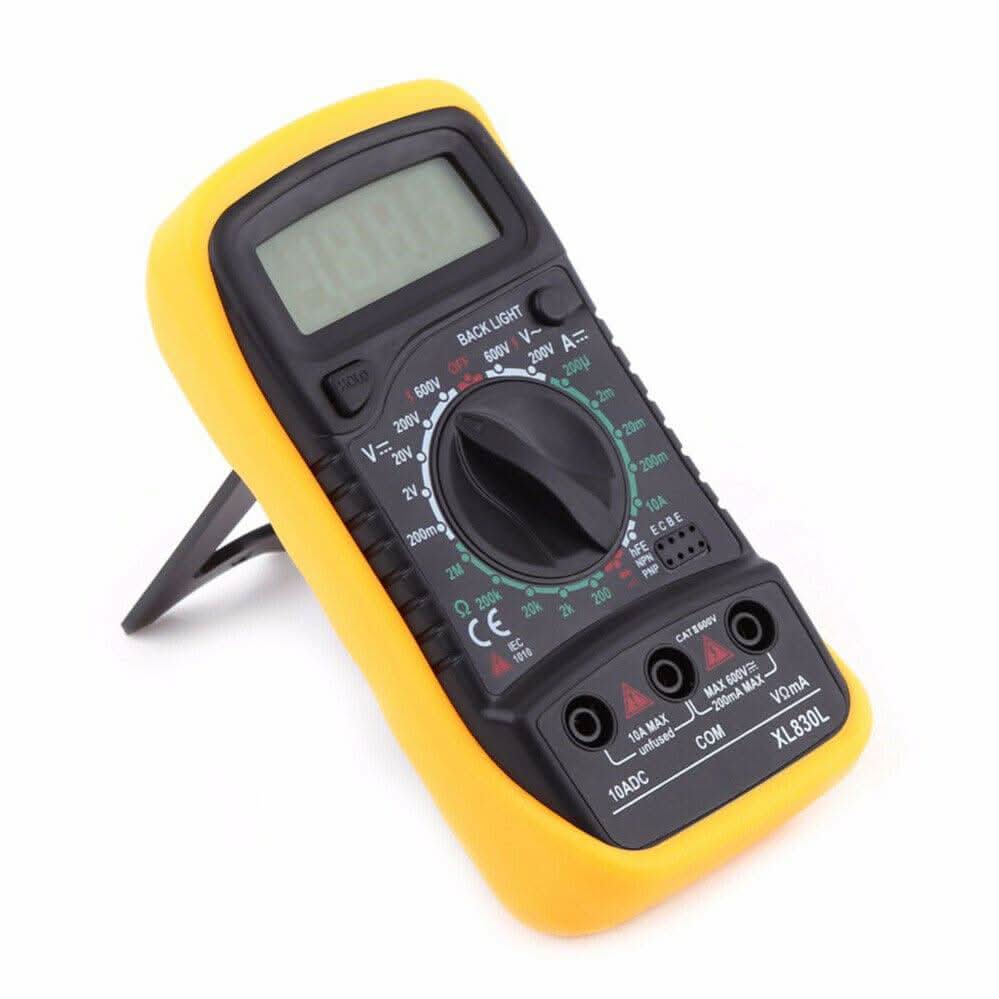

Support Stand: Built-in adjustable stand for hands-free use
Measurement Capabilities:
-
DC Voltage: 200mV / 2V / 20V / 200V / 600V
-

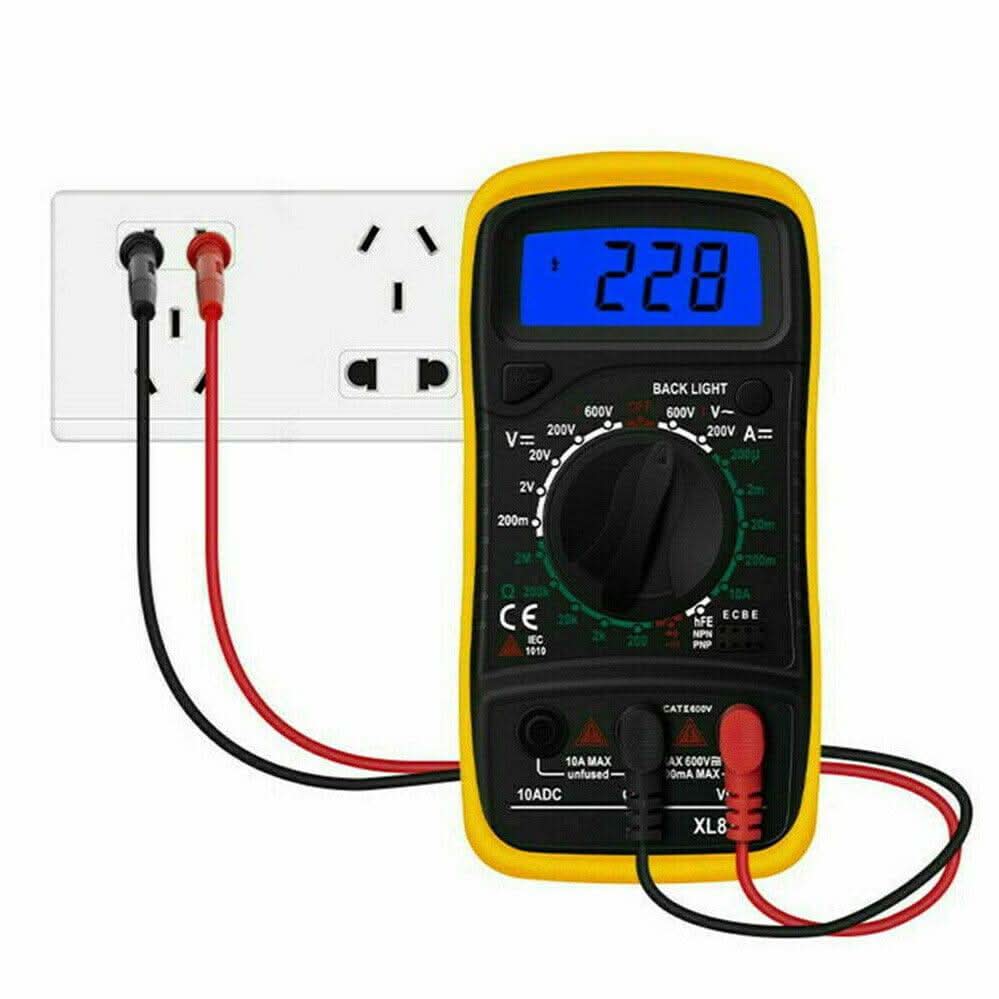

AC Voltage: 200V / 600V
-
DC Current: 200µA / 2mA / 20mA / 200mA / 10A
-
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ
-
Transistor Testing: PNP/NPN hFE
-
Diode Testing: Yes
-
Input Resistance: 1MΩ
Additional Functions:
-
Data Hold
-
Low Battery Indicator
-
Overload Protection
-

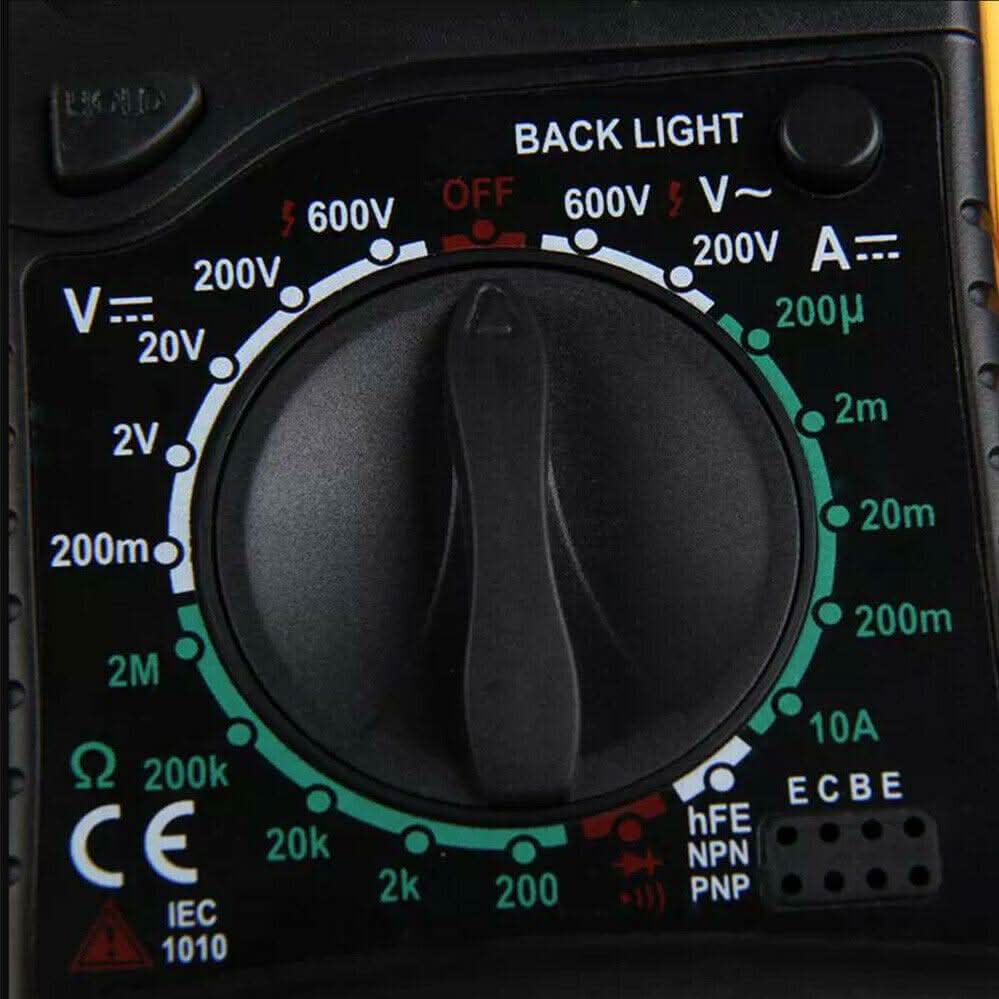

Clear, color-coded function range dial with 20 precise gear settings
-
Smooth and secure test lead socket connection
What’s in the Box:
-

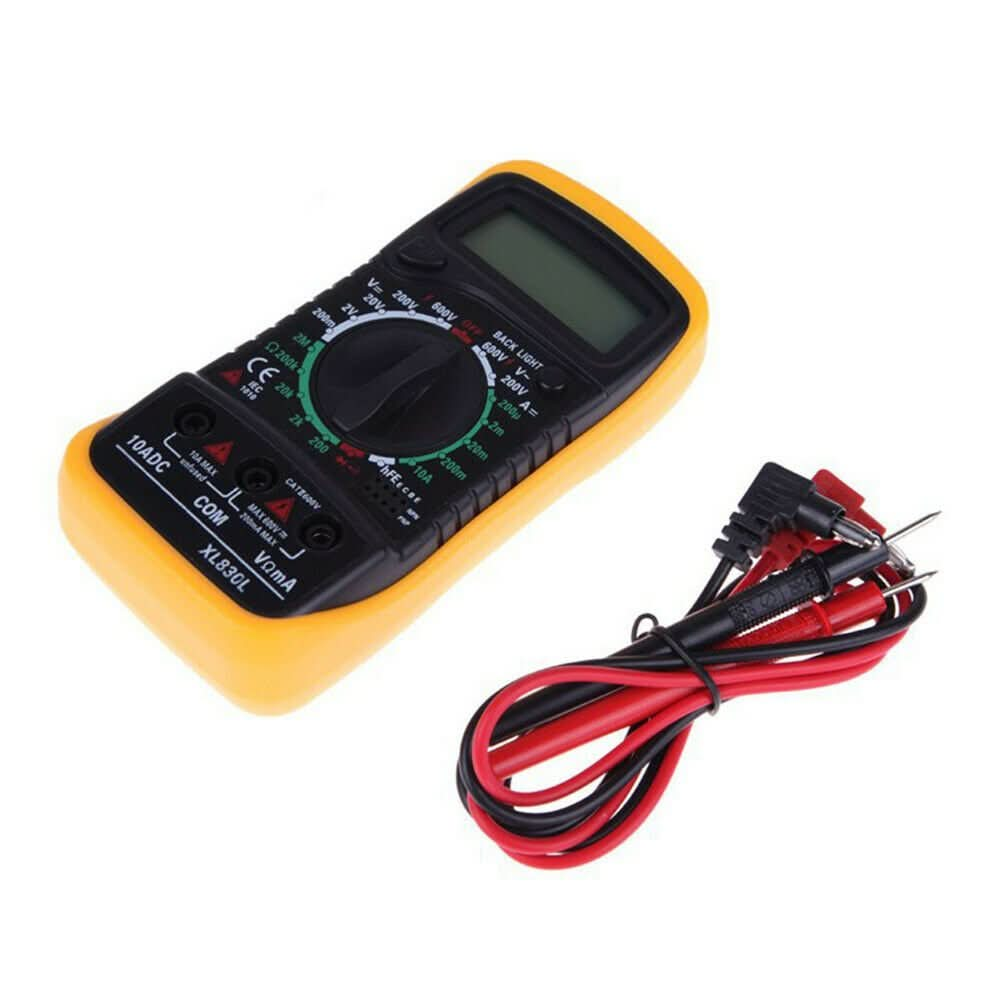

1 × Digital LCD Multimeter
-
2 × Test Probes
-
1 × User Manual
(Battery not included)
