Description

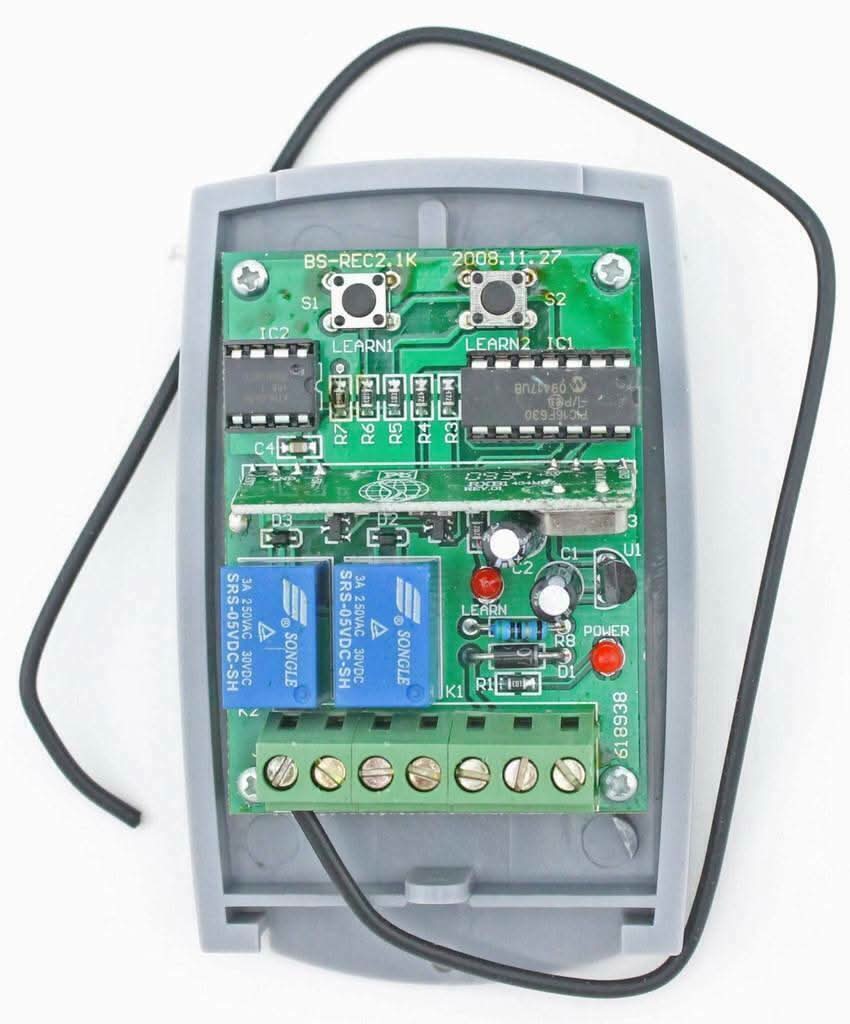

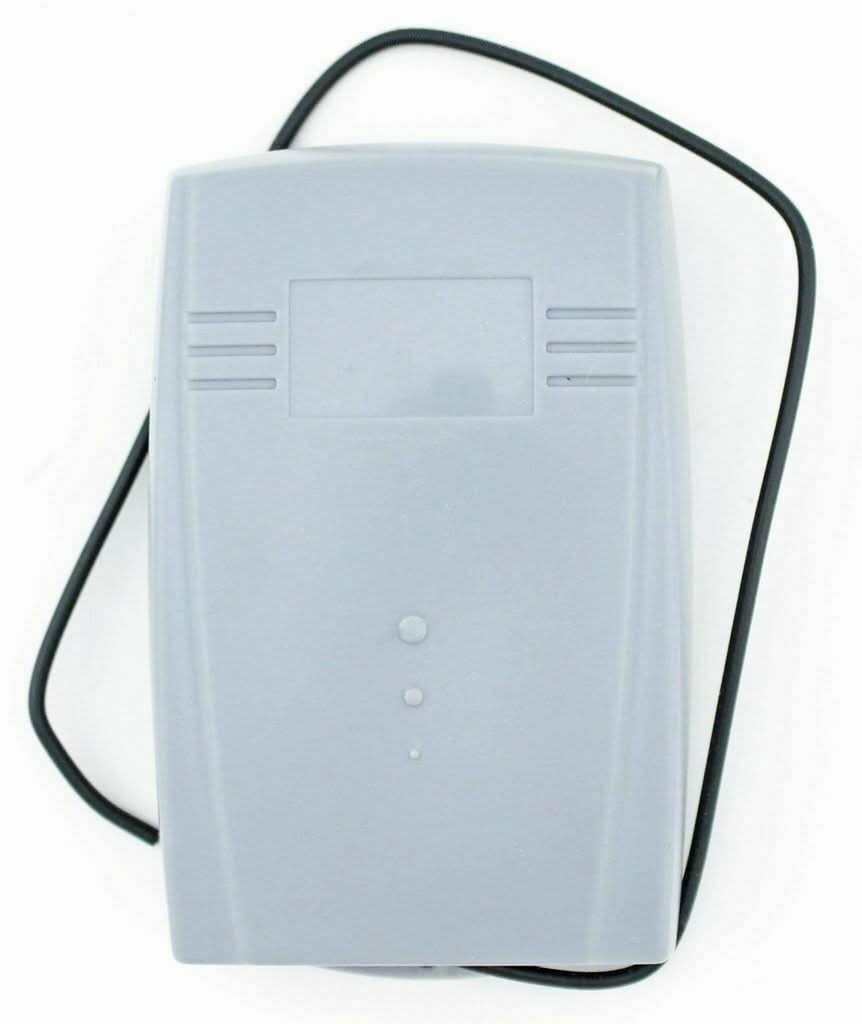

- Tesla HomeLink Compatible Garage/Gate Receiver
- Frequency: 433.92 MHz
- Capacity: 500 remotes
- Channels: 2

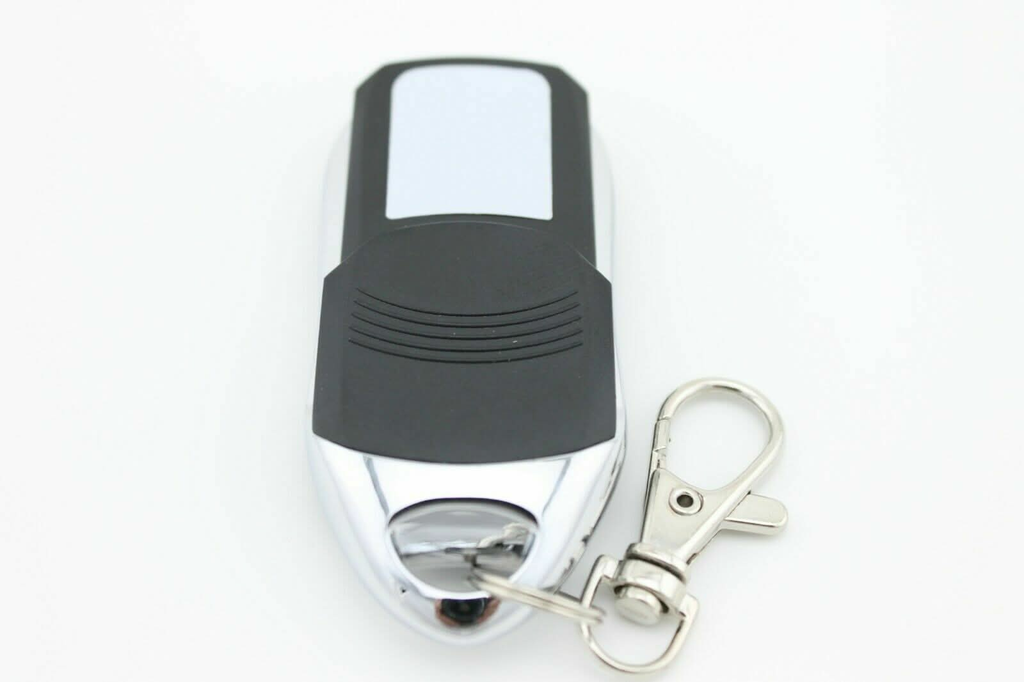

- Please Note: This product includes one compatible remote, for additional remotes please Click Here
- Please Note: We recommend to have this receiver installed by a professional garage installer.
Terminal/Wiring Guide:
- V+ (receiver) > usually called 12V, 24V V+ (motor)
- GND (receiver) > usually called COM, Common, GND, 0V (motor)
- CH1 - Left (receiver) > usually called PB, WB, OSC (motor)
- CH1 - Right (receiver) > usually called COM, Common, GND, 0V (motor)
