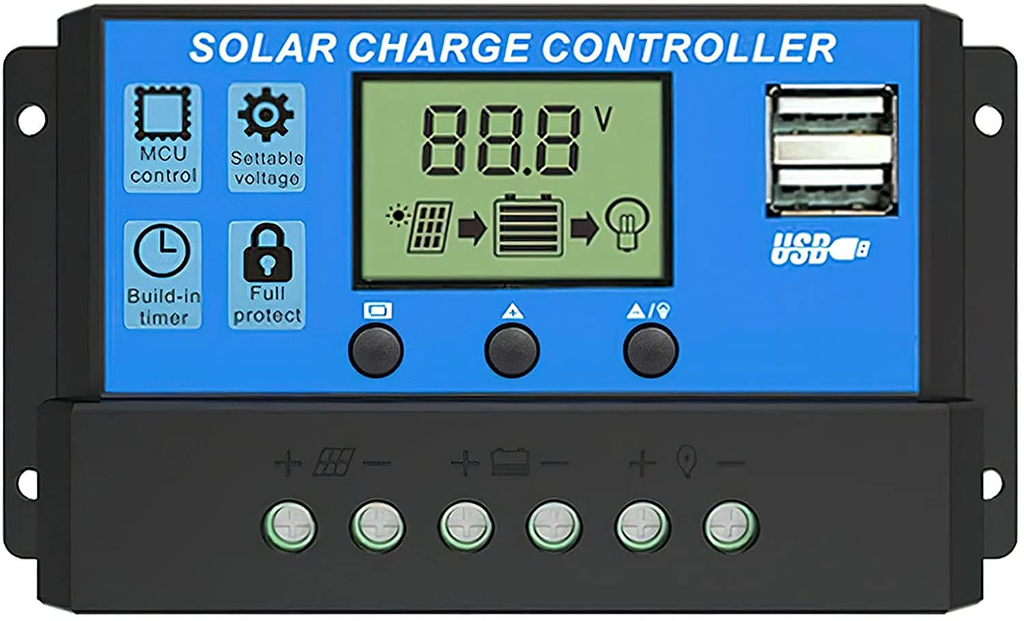

Solar Panel Charge Controller & Regulator 12V/24V auto dual USB 30A Battery PWM

𝗦𝗼𝗹𝗮𝗿 𝗣𝗮𝗻𝗲𝗹 𝗖𝗵𝗮𝗿𝗴𝗲 𝗖𝗼𝗻𝘁𝗿𝗼𝗹𝗹𝗲𝗿 & 𝗥𝗲𝗴𝘂𝗹𝗮𝘁𝗼𝗿 12𝗩/24𝗩 𝗮𝘂𝘁𝗼 𝗱𝘂𝗮𝗹 𝗨𝗦𝗕 30𝗔 𝗕𝗮𝘁𝘁𝗲𝗿𝘆 𝗣𝗪𝗠

Ensure your solar power system runs smoothly and efficiently with this Solar Panel Charge Controller & Regulator. With automatic switching between 12V and 24V systems, dual USB outputs, and a powerful 30A current capacity, this controller is ideal for regulating and charging batteries in off-grid solar systems, campers, RVs, and more. It uses PWM (Pulse Width Modulation) technology for optimal charging and battery management.

𝗞𝗲𝘆 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀:

• Input Voltage: 12V/24V auto detection
• Max Output Current: 30A
• USB Outputs: Dual USB ports for charging devices (5V/2.5A each)

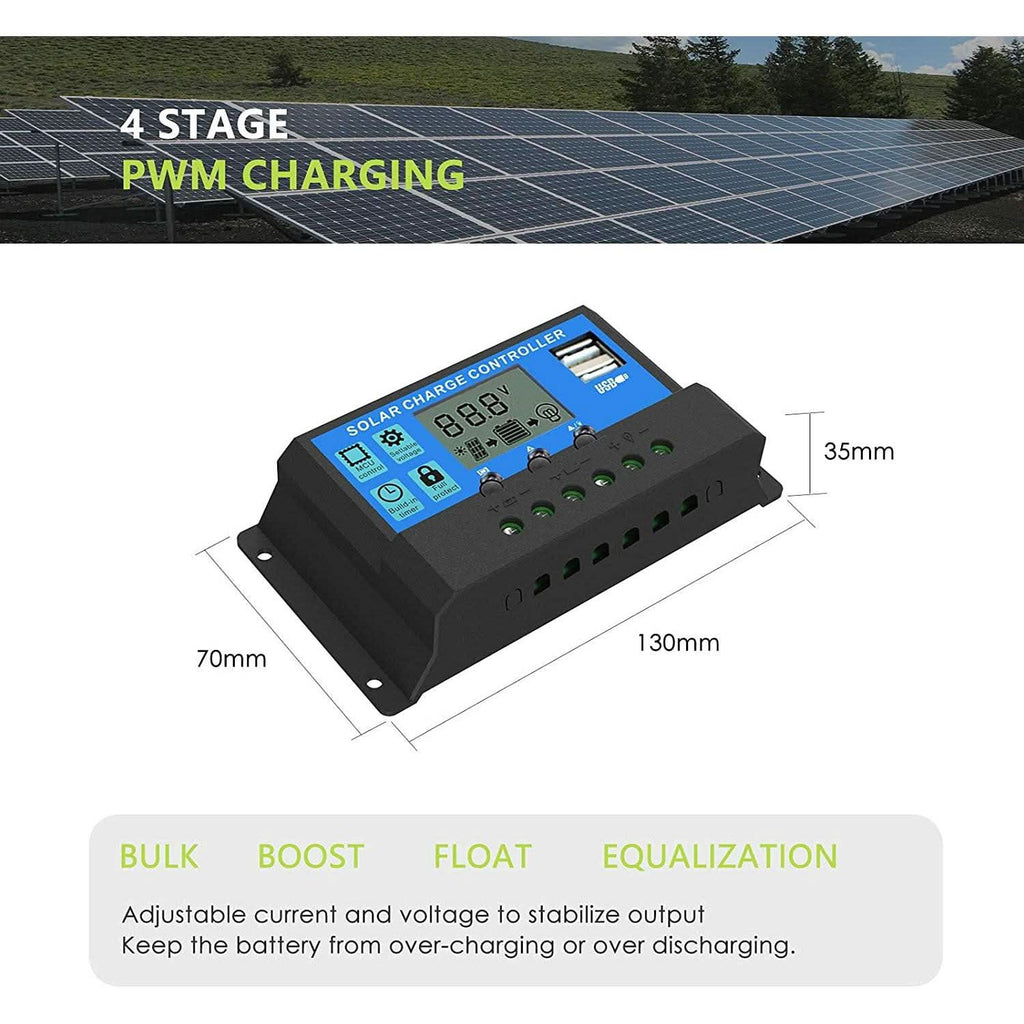

• Technology: PWM (Pulse Width Modulation) for efficient battery charging
• Battery Type: Compatible with lead-acid, AGM, gel, and lithium batteries
• Operating Temperature: -35°C to +60°C

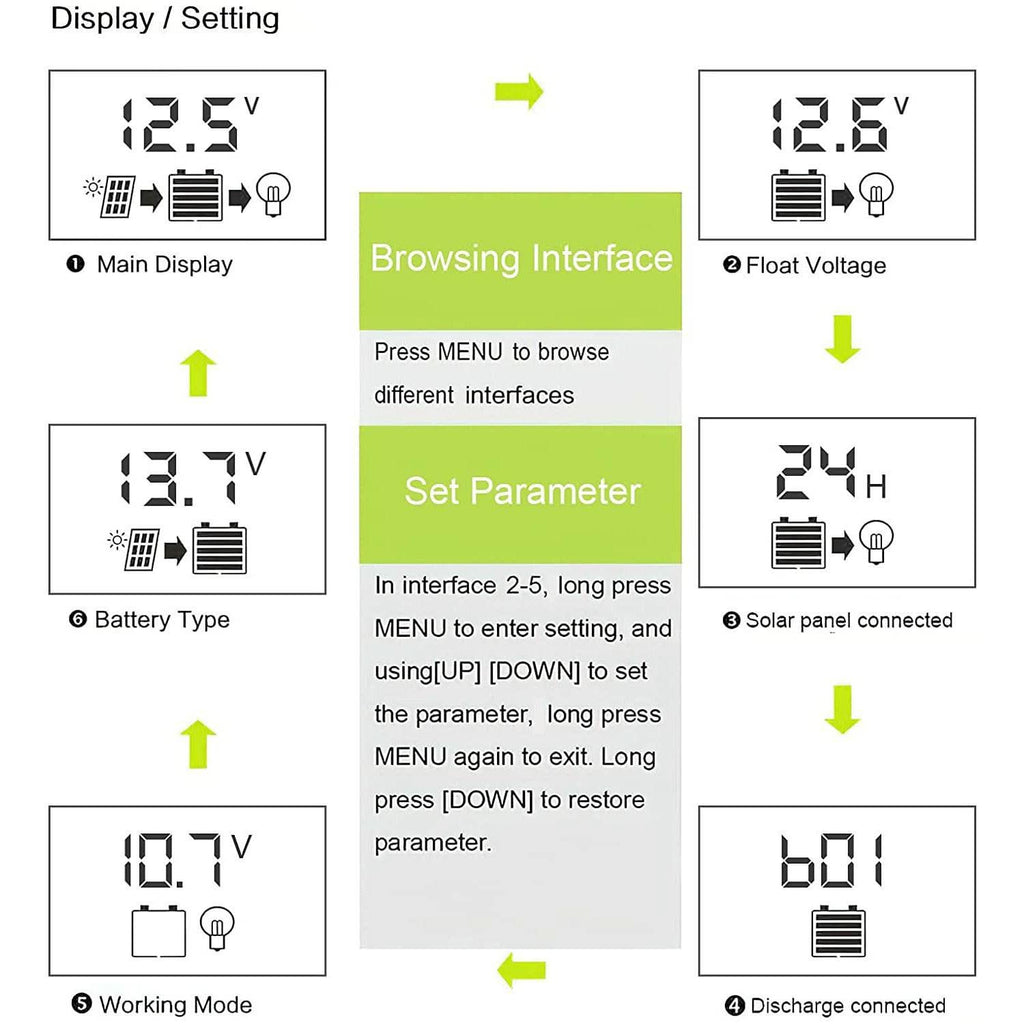

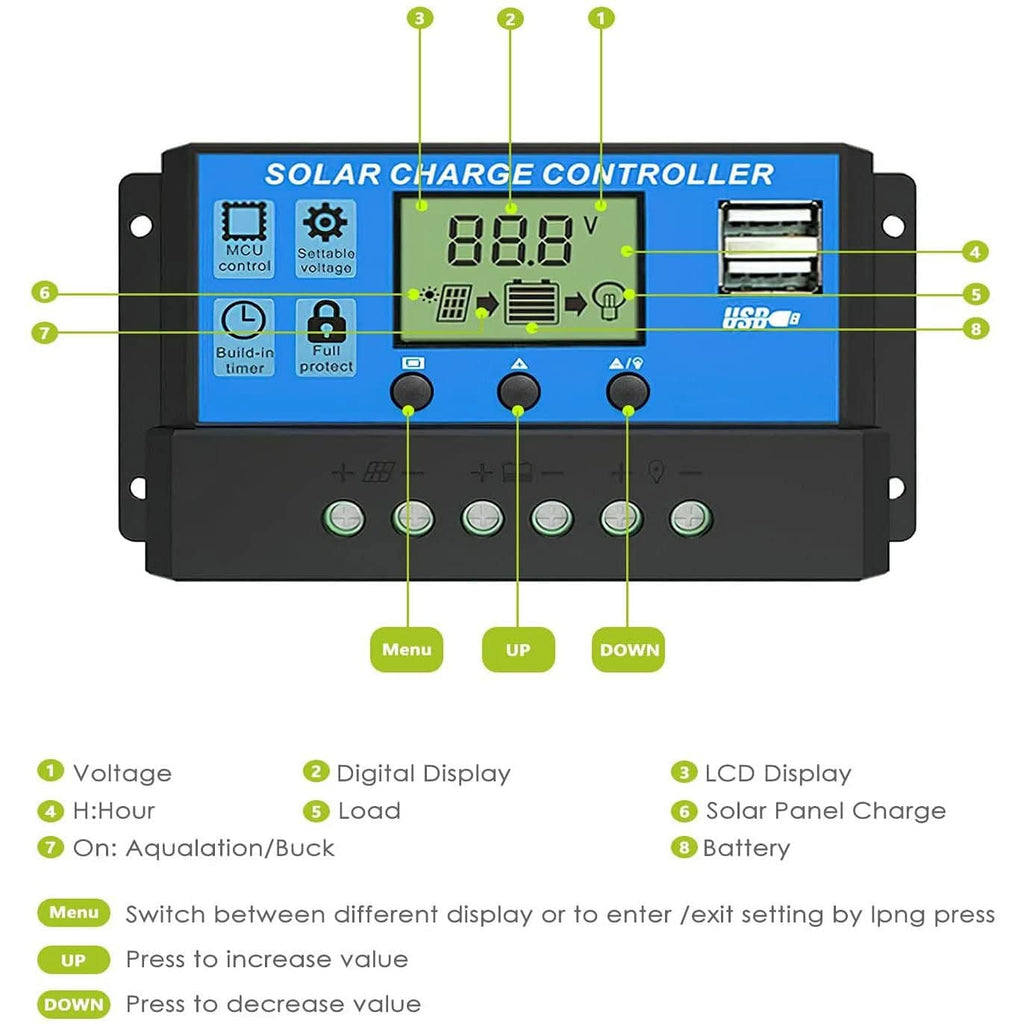

• Display: LCD screen showing battery voltage, charge current, and status

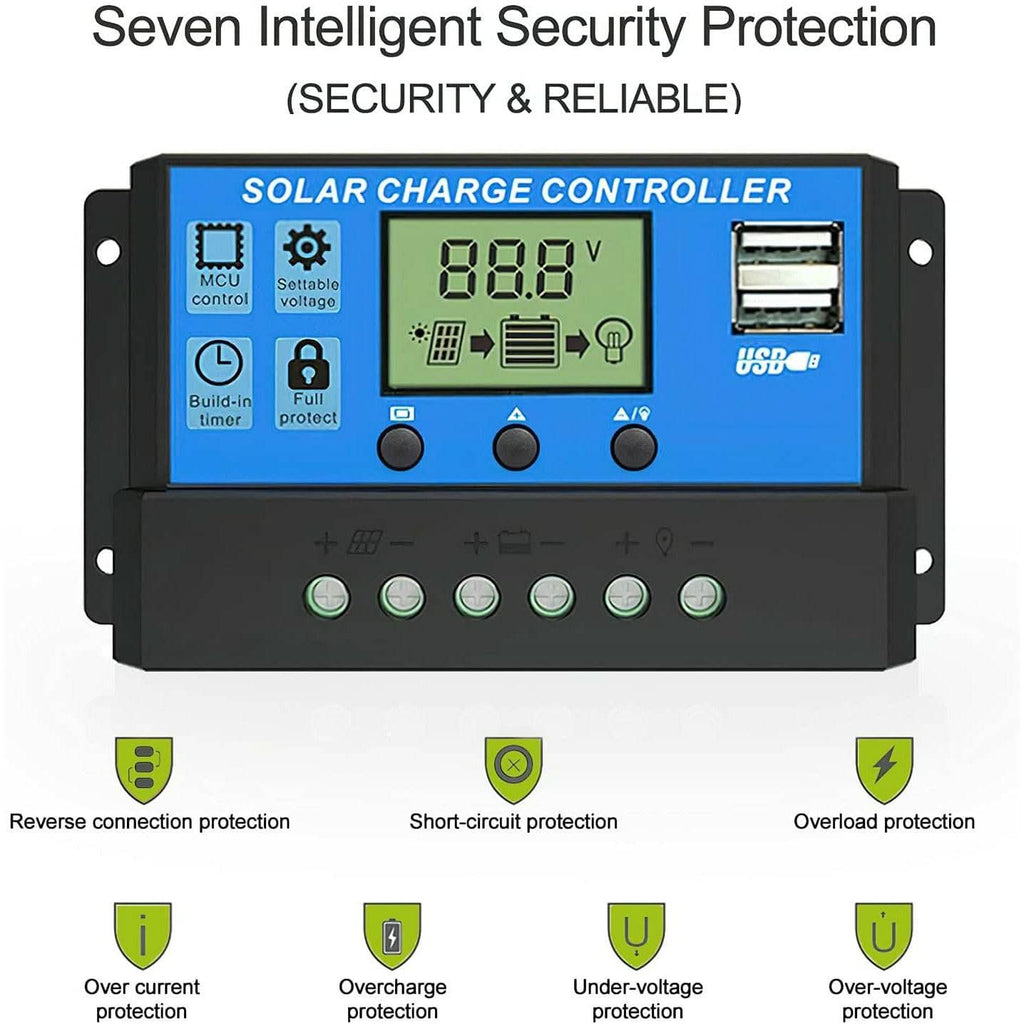

• Overcharge/Over-discharge Protection: Protects your batteries from damage
• Reverse Polarity Protection: Prevents damage in case of incorrect wiring
• Short Circuit Protection: Safeguards against electrical faults

𝗪𝗵𝘆 𝗖𝗵𝗼𝗼𝘀𝗲 𝗧𝗵𝗶𝘀 𝗖𝗵𝗮𝗿𝗴𝗲 𝗖𝗼𝗻𝘁𝗿𝗼𝗹𝗹𝗲𝗿?

• Dual USB Charging Ports – Charge your mobile devices, cameras, or other gadgets while your solar system is running.
• High Current Capacity – 30A output ensures your batteries are charged efficiently even under higher loads.
• Automatic Voltage Detection – No need to manually switch between 12V or 24V – the controller does it automatically.
• Reliable and Safe – Built-in protection against overcharge, short circuit, reverse polarity, and more, ensuring the safety of your battery and devices.
• Efficient PWM Charging – Uses Pulse Width Modulation for precise, energy-efficient charging of your battery.
• Clear LCD Display – Easily monitor your system’s performance with a clear, backlit display showing key information like battery voltage and charge current.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀:

• 1 x Solar Panel Charge Controller & Regulator
• 1 x User Manual

𝗙𝗔𝗤𝘀:

𝗖𝗮𝗻 𝗜 𝘂𝘀𝗲 𝘁𝗵𝗶𝘀 𝗰𝗵𝗮𝗿𝗴𝗲 𝗰𝗼𝗻𝘁𝗿𝗼𝗹𝗹𝗲𝗿 𝘄𝗶𝘁𝗵 𝗹𝗶𝘁𝗵𝗶𝘂𝗺 𝗯𝗮𝘁𝘁𝗲𝗿𝗶𝗲𝘀?
Yes, this controller is compatible with lithium batteries as well as lead-acid, AGM, and gel batteries.

𝗛𝗼𝘄 𝗱𝗼𝗲𝘀 𝘁𝗵𝗲 𝗽𝘂𝗹𝘀𝗲 𝘄𝗶𝗱𝘁𝗵 𝗺𝗼𝗱𝘂𝗹𝗮𝘁𝗶𝗼𝗻 (𝗣𝗪𝗠) 𝘄𝗼𝗿𝗸 𝗳𝗼𝗿 𝗰𝗵𝗮𝗿𝗴𝗶𝗻𝗴?
PWM technology controls the amount of power sent to the battery in a controlled pulse, improving battery life and efficiency by providing optimal charge levels.

𝗜𝘀 𝘁𝗵𝗲𝗿𝗲 𝗮 𝗹𝗶𝗺𝗶𝘁 𝗼𝗻 𝗵𝗼𝘄 𝗺𝗮𝗻𝘆 𝗱𝗲𝘃𝗶𝗰𝗲𝘀 𝗖𝗮𝗻 𝗜 𝗰𝗵𝗮𝗿𝗴𝗲 𝘄𝗶𝘁𝗵 𝘁𝗵𝗲 𝗗𝘂𝗮𝗹 𝗨𝗦𝗕 𝗽𝗼𝗿𝘁𝘀?
The dual USB ports can charge two devices simultaneously, with a total output of 5V/2.5A per port. Ensure devices do not exceed the charging limits.

𝗜𝗳 𝗺𝘆 𝗽𝗮𝗻𝗲𝗹 𝗰𝗼𝗻𝗻𝗲𝗰𝘁𝗲𝗱 𝗽𝗼𝗹𝗮𝗿𝗶𝘁𝘆 𝗶𝘀 𝘄𝗿𝗼𝗻𝗴, 𝘄𝗵𝗮𝘁 𝗵𝗮𝗽𝗽𝗲𝗻𝘀?
The charge controller has reverse polarity protection to prevent damage in case of incorrect wiring.
