Description
Specifications :
- Maximum Power Pmax: 100W
- Voltage at Maximum Power Point Vmp (V): 18.9
- Current at Maximum Power Point Imp (A): 10.6
- Power Specification: STC: AM1.5,1000W/m2, 25℃
- Solar cell: Monocrystalline
- Cell Grade: Grade A
- Cells Efficiency (%): 17%
- Application Class:Class A
- Maximum System Voltage: 1000VDC
- Maximum Series Fuse Rating: 15A
- Fire Rating: Class C

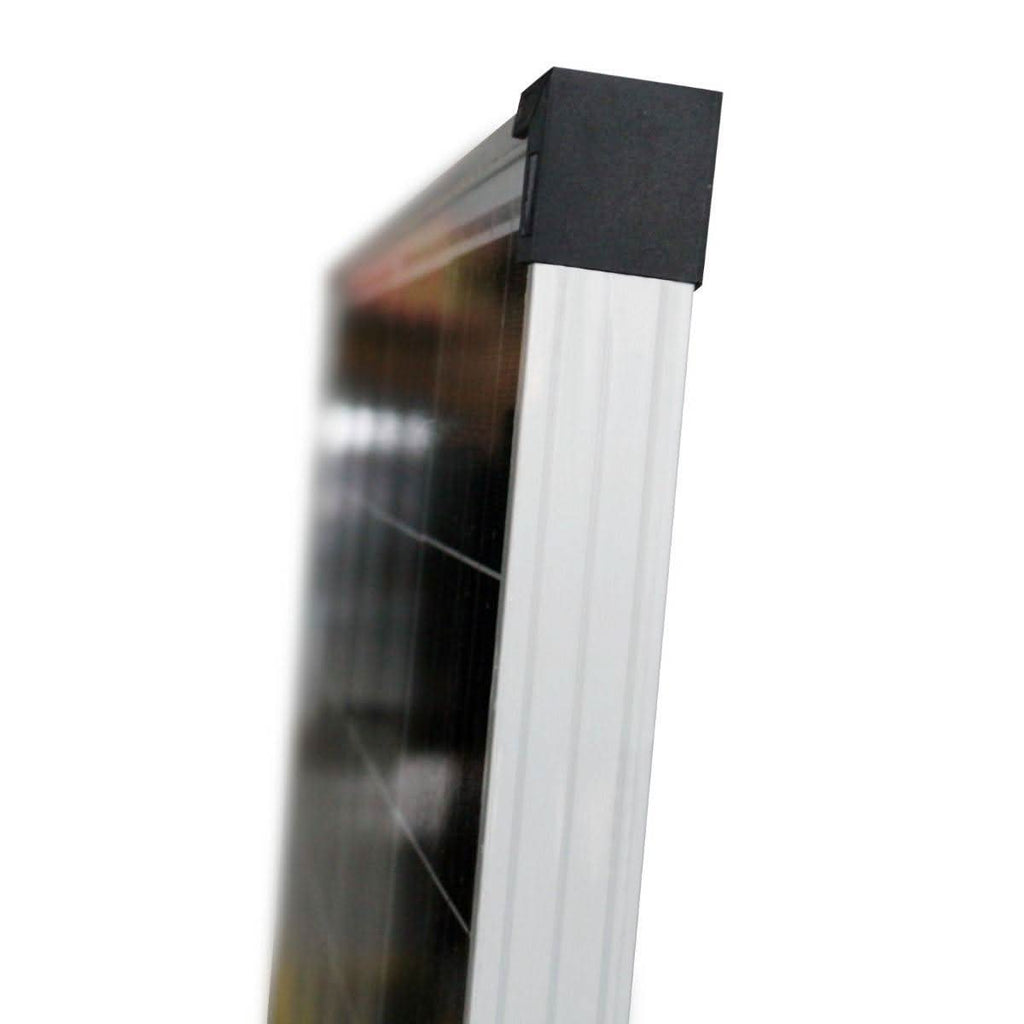

- Frame: Anodized Aluminium Alloy
- Glass: 3.2mm Low Iron Tempered glass
- Cable Thickness: 3mm
- IP Rating: IP65
- Operating Module Temperature: -45℃ to +90℃
Size :
- Open Size: 1200mm * 550mm x 50mm (approximately)
