Description
Product Specifications:

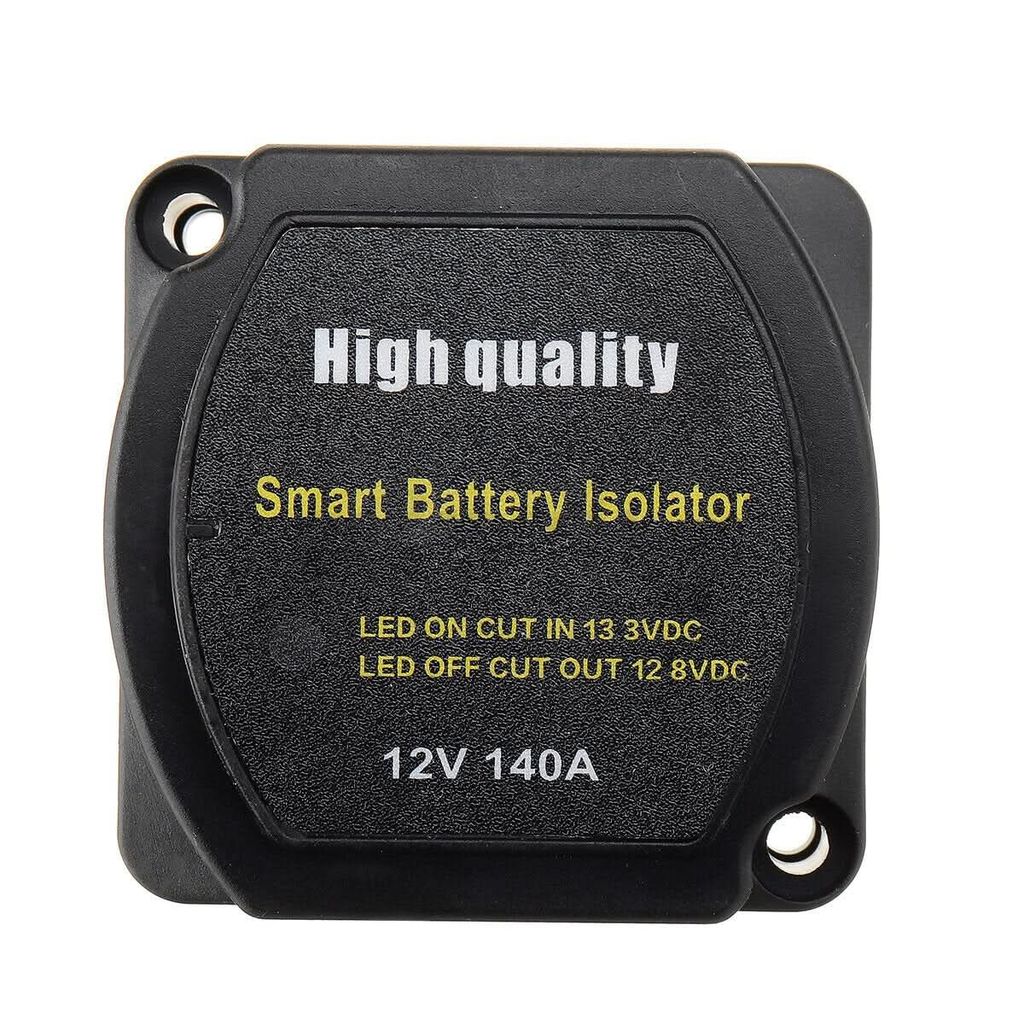

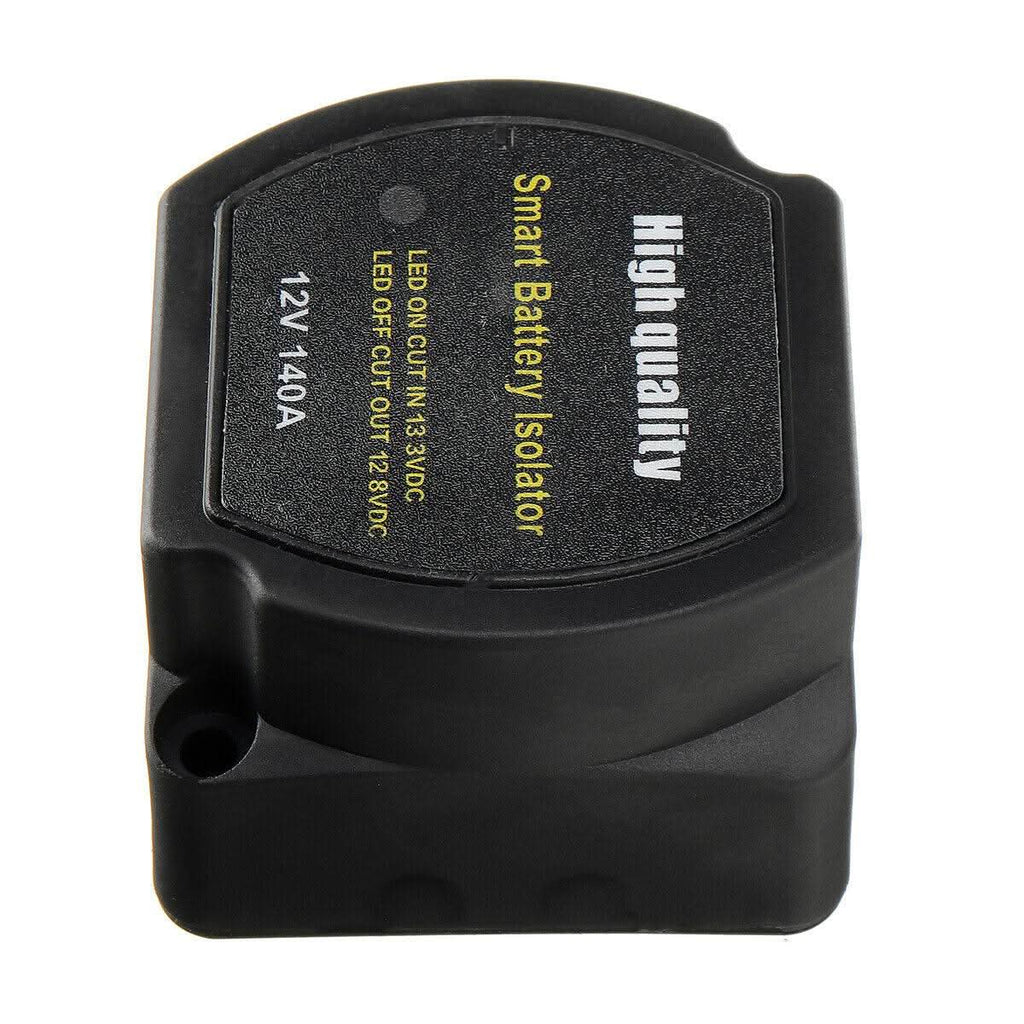

The split charge relays are CE approved products with a red LED indicator and allows the split charging of a second battery without discharging the primary battery or the start battery.
Features:
- Automotive Dual Battery Isolator Relay Protection Voltage Split Charge 12V 140A
- Material: Nylon
- Color: Black
- Nominal Voltage: DC 12V
- Combine Voltage: DC 13.3V
- Open Voltage: DC 12.8V
- Continuous Rating: DC 125A
- Intermittent Rating: DC 140A
- Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)
- Terminal Studs|: M6(1/4”)
- Waterproof Level: IP67
The split charge relays are CE approved products with a red LED indicator and allows the split charging of a second battery without discharging the primary battery or the start battery.
Features:
- Automatically combines two batteries when charging and isolates the two batteries when not charging.
- Suitable To Install into Camper Vans, 4x4, Leisure Vehicles & Marine Applications.
- Not 70 Amp Cable As Per Some Other Similar Priced Kits.
- No voltage drops comparing to battery isolator diodes (0.6V).
- Meets ISO8846 Ignition Protection, suitable for use in engine room.

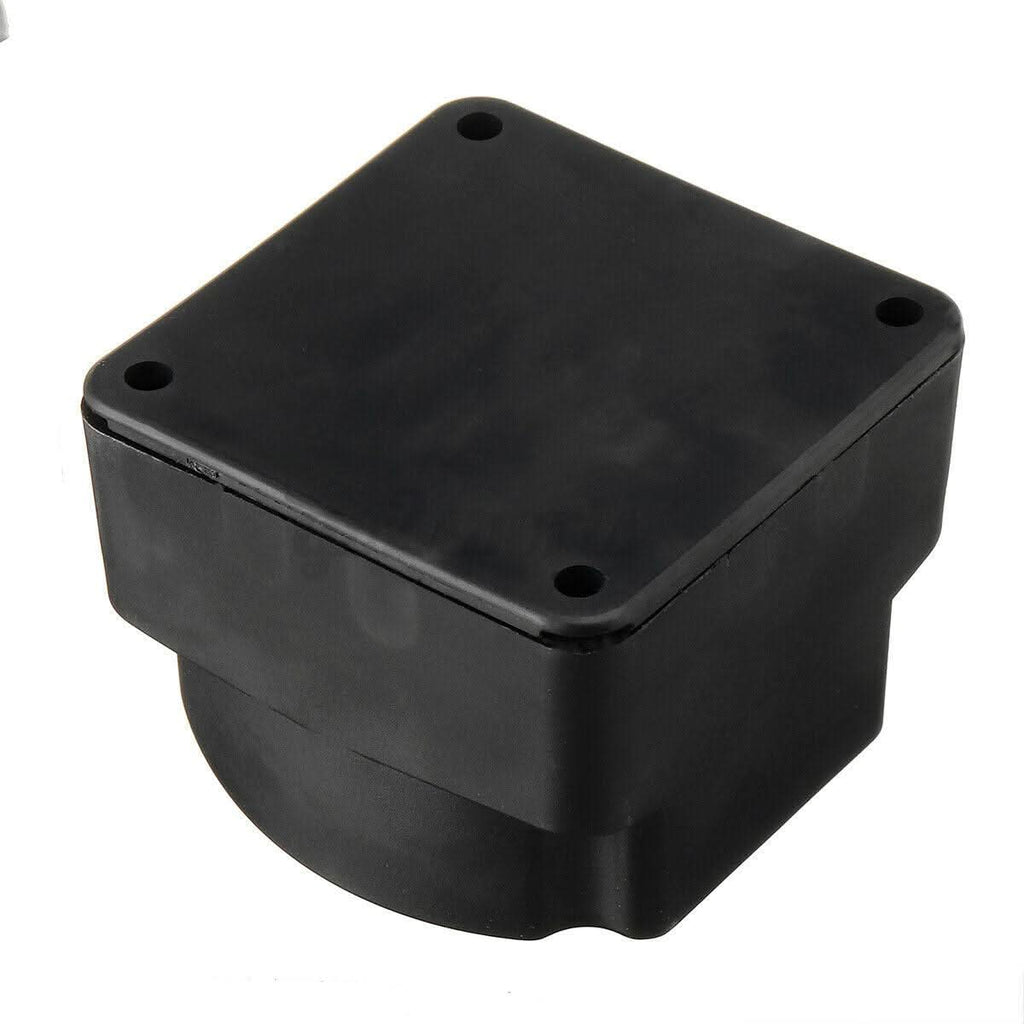

- Robust Glass Fiber reinforced Nylon enclosure.
- Built-in LED indication (ON when VSR engages).
- Surface or panel mount options provides flexibility when installing.
- Optional Storage Mode allows zero power consumption when engine is off.
- 1 x Voltage Sensitive Relay
