Description
- 350A Battery Monitor is able to monitor the amperage flowing out of the battery
- bank & Measure currents up to 500 amps. Voltage, current, consumed power & battery capacity is all accurately measured & displayed on the LCD screen in
- real- time. The Battery Monitor is intended to help maintain battery systems for
- 12V deep cycle batteries, such as ones found in RV, boats or off grid homes,
- which are regularly charged & discharged
- High precision Current detection; accurate Battery SOC%
- High and low voltage programmable alarm - backlight and voltage value will flash
- Simultaneously
- Data storage - designed to automatically store the last testing data when system
- shuts off

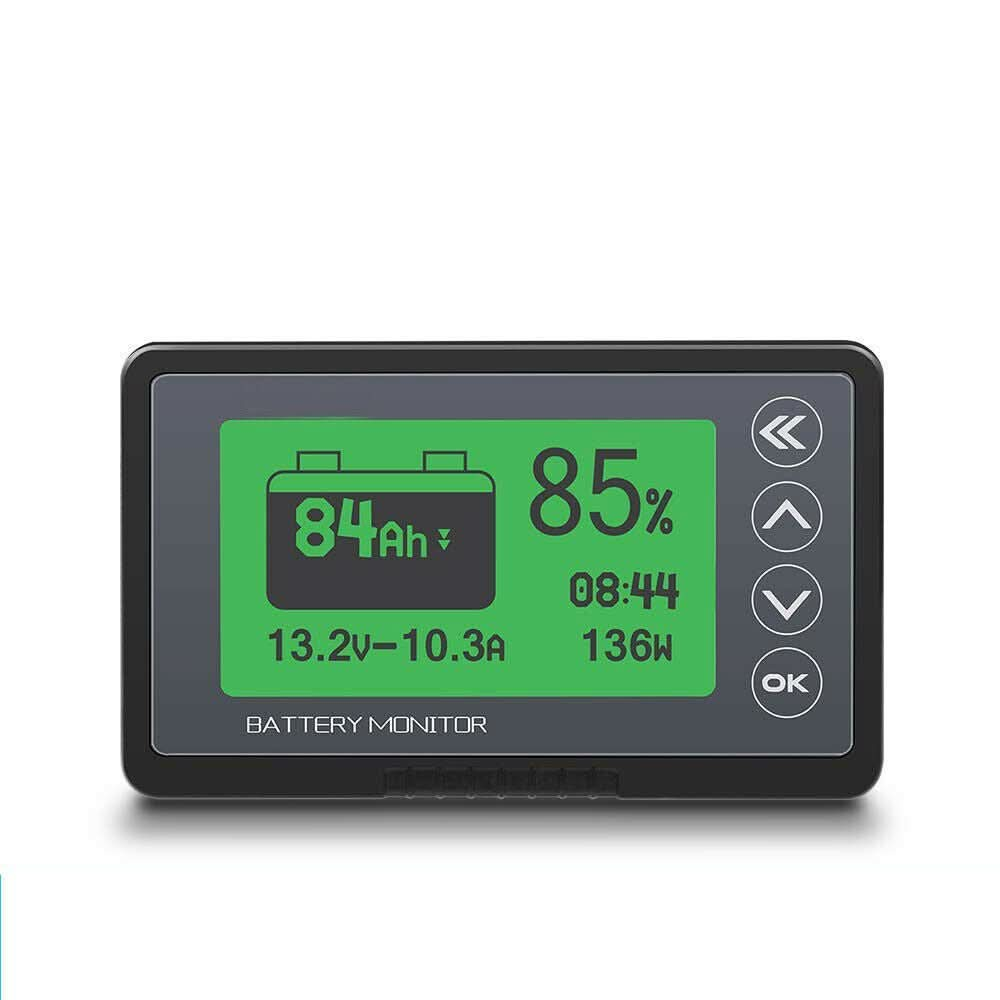

- Large backlit LCD displays multiple electronic parameters (voltage, current,
- consumed power and battery capacity
- Universal Battery Monitor- voltage range 10v-120v and up to 350A
Specifications:
- Working Voltage: 10-120V
- Working Dissipation: 10-15mA
- Standby Dissipation: 1-2mA
- Temperature range: 0-35°C
- Weight: 2.6 oz / 75 g
- Size: 3.9 x 2.4 x 0.7 in / 100 x 61 x 17 mm
1.Measures the rate of energy going in or out of your batteries so you can check
your charging systems & see how much energy your appliances use.
2.Compatible with 12V Lithium Sealed, Gel, Flooded Batteries
3.Maximizing your battery life.
4.Voltage, current, consumed power & battery capacity is all accurately
measured & displayed on the LCD screen in real-time.
